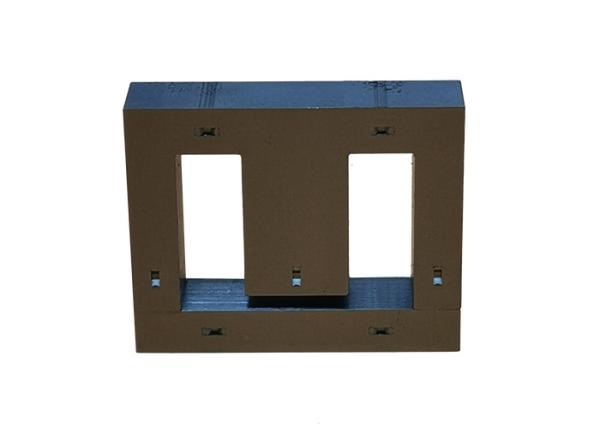

0.5mm EI Lamination Core

EI Stainless Sheet Laminated Soft Iron Core

Factory hot sale steel laminated silicon core stainless sheet soft iron with wholesale price

For the iron core of the transformer, a cold-rolled silicon steel sheet with a thickness of 0.35 mm is generally used. According to the size of the required iron core, it is cut into long pieces, and then overlapped into the shape of "Japanese" or "mouth". In principle, if the vortex is reduced, the thinner the silicon steel sheet is, the narrower the spliced strip is. The better the effect. This reduces the eddy current loss, lowers the temperature rise, and also saves the material of the silicon steel sheet. However, when actually manufacturing the silicon steel sheet iron core, it is not only based on the above-mentioned favorable factors. Because the iron core is produced that way, it needs to be greatly increased Man-hours also reduce the effective cross-section of the r core. Therefore, when using silicon steel sheet to make the transformer core, we should weigh the pros and cons from the specific situation and choose the best size.

1. A variety of different specifications to meet your requirements. Or customized according to your needs.

2. According to your needs, to recommend suitable materials, or in accordance with your request.

3. The advanced slitting machine from Taiwan cuts silicon steel coils into strips with different width.

4. With well-trained technicians and advanced equipments, we are very skilled in making moulds for various kinds of silicon steel products.

0.5mm ei transformer laminations

0.5mm transformer ei core

0.5mm electric motor laminations

0.5mm EI Lamination Core Images
